Polyline

Polylines are sequences of line segments that connect multiple geographic points. They are commonly used for routes, paths, boundaries, or any linear features on the map.

Composable Functions

Basic Polyline

@Composable
fun MapViewScope.Polyline(
    points: List<GeoPoint>,
    id: String? = null,
    strokeColor: Color = Color.Black,
    strokeWidth: Dp = 1.dp,
    geodesic: Boolean = false,
    extra: Serializable? = null
)

Polyline with State

@Composable
fun MapViewScope.Polyline(state: PolylineState)

Parameters

• points: List of geographic coordinates that define the line segments (List<GeoPoint>)
• id: Optional unique identifier for the polyline (String?)
• strokeColor: Color of the line (default: Color.Black)
• strokeWidth: Width of the line (default: 1.dp)
• geodesic: Whether to draw geodesic lines (following Earth’s curvature, default: false)
• extra: Additional data attached to the polyline (Serializable?)

Usage Examples

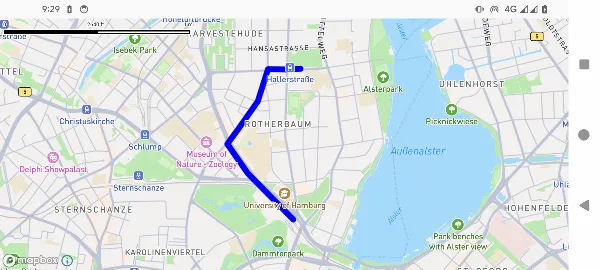

Basic Polyline

// Replace MapView with your chosen map provider, such as GoogleMapView, MapboxMapView
MapView(state = mapViewState) {
    val routePoints = listOf(
        GeoPointImpl.fromLatLong(37.7749, -122.4194), // San Francisco
        GeoPointImpl.fromLatLong(37.7849, -122.4094), // Point 2
        GeoPointImpl.fromLatLong(37.7949, -122.3994), // Point 3
        GeoPointImpl.fromLatLong(37.8049, -122.3894)  // Point 4
    )

    Polyline(
        points = routePoints,
        strokeColor = Color.Blue,
        strokeWidth = 3.dp
    )
}

Interactive Polyline with Waypoint Markers

Based on the example app pattern:

@Composable
fun InteractivePolylineExample() {
    var waypoints by remember {
        mutableStateOf(
            listOf(
                GeoPointImpl.fromLatLong(37.7749, -122.4194),
                GeoPointImpl.fromLatLong(37.7849, -122.4094),
                GeoPointImpl.fromLatLong(37.7949, -122.3994)
            )
        )
    }

    val polylineState = PolylineState(
        points = waypoints,
        strokeColor = Color.Blue,
        strokeWidth = 4.dp,
        geodesic = true
    )

    val waypointMarkers = waypoints.mapIndexed { index, point ->
        MarkerState(
            position = point,
            icon = DefaultIcon(
                fillColor = Color.Blue,
                label = "${index + 1}"
            ),
            draggable = true,
            extra = "Waypoint $index"
        )
    }

    // Replace MapView with your chosen map provider, such as GoogleMapView, MapboxMapView
MapView(
        state = mapViewState,
        onMarkerDrag = { markerState ->
            val markerIndex = markerState.extra.toString().substringAfter("Waypoint ").toIntOrNull()
            markerIndex?.let { index ->
                waypoints = waypoints.toMutableList().apply {
                    if (index < size) {
                        set(index, markerState.position)
                    }
                }
            }
        }
    ) {
        // Draw the polyline
        Polyline(polylineState)

        // Draw waypoint markers
        waypointMarkers.forEach { marker ->
            Marker(marker)
        }
    }
}

Multiple Polylines with Different Styles

// Replace MapView with your chosen map provider, such as GoogleMapView, MapboxMapView
MapView(state = mapViewState) {
    // Route 1 - Highway (thick blue line)
    Polyline(
        points = listOf(
            GeoPointImpl.fromLatLong(37.7749, -122.4194),
            GeoPointImpl.fromLatLong(37.7849, -122.4094),
            GeoPointImpl.fromLatLong(37.7949, -122.3994)
        ),
        strokeColor = Color.Blue,
        strokeWidth = 6.dp,
        geodesic = true,
        extra = "Highway route"
    )

    // Route 2 - Walking path (thin green line)
    Polyline(
        points = listOf(
            GeoPointImpl.fromLatLong(37.7749, -122.4194),
            GeoPointImpl.fromLatLong(37.7799, -122.4144),
            GeoPointImpl.fromLatLong(37.7849, -122.4094)
        ),
        strokeColor = Color.Green,
        strokeWidth = 2.dp,
        geodesic = false,
        extra = "Walking path"
    )

    // Route 3 - Bike path (dashed-looking red line)
    Polyline(
        points = listOf(
            GeoPointImpl.fromLatLong(37.7749, -122.4194),
            GeoPointImpl.fromLatLong(37.7729, -122.4174),
            GeoPointImpl.fromLatLong(37.7709, -122.4154)
        ),
        strokeColor = Color.Red,
        strokeWidth = 3.dp,
        extra = "Bike path"
    )
}

Dynamic Polyline Construction

@Composable
fun DynamicPolylineExample() {
    var points by remember { mutableStateOf<List<GeoPoint>>(emptyList()) }
    var isDrawing by remember { mutableStateOf(false) }

    Column {
        Row {
            Button(
                onClick = { isDrawing = !isDrawing }
            ) {
                Text(if (isDrawing) "Stop Drawing" else "Start Drawing")
            }

            Button(
                onClick = { points = emptyList() }
            ) {
                Text("Clear")
            }
        }

        // Replace MapView with your chosen map provider, such as GoogleMapView, MapboxMapView
MapView(
            state = mapViewState,
            onMapClick = { geoPoint ->
                if (isDrawing) {
                    points = points + geoPoint
                }
            }
        ) {
            if (points.isNotEmpty()) {
                Polyline(
                    points = points,
                    strokeColor = Color.Red,
                    strokeWidth = 3.dp
                )

                // Add markers at each point
                points.forEachIndexed { index, point ->
                    Marker(
                        position = point,
                        icon = DefaultIcon(
                            fillColor = if (index == 0) Color.Green
                                      else if (index == points.size - 1) Color.Red
                                      else Color.Blue,
                            label = "${index + 1}",
                            scale = 0.8f
                        )
                    )
                }
            }
        }
    }
}

Geodesic vs Standard Lines

// Replace MapView with your chosen map provider, such as GoogleMapView, MapboxMapView
MapView(state = mapViewState) {
    val longDistancePoints = listOf(
        GeoPointImpl.fromLatLong(37.7749, -122.4194), // San Francisco
        GeoPointImpl.fromLatLong(40.7128, -74.0060)   // New York
    )

    // Standard line (straight on map projection)
    Polyline(
        points = longDistancePoints,
        strokeColor = Color.Red,
        strokeWidth = 3.dp,
        geodesic = false,
        extra = "Straight line"
    )

    // Geodesic line (follows Earth's curvature)
    Polyline(
        points = longDistancePoints,
        strokeColor = Color.Blue,
        strokeWidth = 3.dp,
        geodesic = true,
        extra = "Geodesic line"
    )
}

Animated Route Progress

@Composable
fun AnimatedRouteExample() {
    val fullRoute = remember {
        listOf(
            GeoPointImpl.fromLatLong(37.7749, -122.4194),
            GeoPointImpl.fromLatLong(37.7849, -122.4094),
            GeoPointImpl.fromLatLong(37.7949, -122.3994),
            GeoPointImpl.fromLatLong(37.8049, -122.3894)
        )
    }

    var progress by remember { mutableStateOf(0f) }

    LaunchedEffect(Unit) {
        while (true) {
            delay(100)
            progress = (progress + 0.01f) % 1f
        }
    }

    val currentPointCount = (fullRoute.size * progress).toInt().coerceAtLeast(2)
    val visibleRoute = fullRoute.take(currentPointCount)

    Column {
        LinearProgressIndicator(
            progress = progress,
            modifier = Modifier
                .fillMaxWidth()
                .padding(16.dp)
        )

        // Replace MapView with your chosen map provider, such as GoogleMapView, MapboxMapView
MapView(state = mapViewState) {
            if (visibleRoute.size >= 2) {
                // Completed route (gray)
                Polyline(
                    points = visibleRoute,
                    strokeColor = Color.Blue,
                    strokeWidth = 4.dp
                )

                // Current position marker
                Marker(
                    position = visibleRoute.last(),
                    icon = DefaultIcon(
                        fillColor = Color.Red,
                        label = "🚗"
                    )
                )
            }

            // Full route preview (light gray)
            Polyline(
                points = fullRoute,
                strokeColor = Color.LightGray,
                strokeWidth = 2.dp
            )
        }
    }
}

Event Handling

Polyline interactions are handled with your map provider component:

// Replace MapView with your chosen map provider, such as GoogleMapView, MapboxMapView
MapView(
    state = mapViewState,
    onPolylineClick = { polylineEvent ->
        val polyline = polylineEvent.state
        val clickPoint = polylineEvent.clicked

        println("Polyline clicked:")
        println("  Points count: ${polyline.points.size}")
        println("  Click location: ${clickPoint}")
        println("  Extra data: ${polyline.extra}")
    }
) {
    Polyline(
        points = routePoints,
        strokeColor = Color.Blue,
        strokeWidth = 4.dp,
        extra = "Interactive route"
    )
}

Styling Options

Line Width Variations

// Thin line
Polyline(
    points = points,
    strokeWidth = 1.dp
)

// Medium line
Polyline(
    points = points,
    strokeWidth = 3.dp
)

// Thick line
Polyline(
    points = points,
    strokeWidth = 8.dp
)

Color Variations

// Solid colors
Polyline(points = points, strokeColor = Color.Red)
Polyline(points = points, strokeColor = Color.Blue)
Polyline(points = points, strokeColor = Color.Green)

// Semi-transparent
Polyline(points = points, strokeColor = Color.Red.copy(alpha = 0.7f))

// Custom colors
Polyline(
    points = points,
    strokeColor = Color(0xFF4CAF50) // Material Green
)

Best Practices

1. Point Density: Balance between detail and performance - too many points can slow rendering
2. Geodesic Lines: Use geodesic lines for long-distance routes to show accurate paths
3. Visual Hierarchy: Use different colors and widths to distinguish between different types of routes
4. Interactive Feedback: Provide visual feedback when polylines are clickable
5. Performance: Consider using simplified geometries for complex polylines at certain zoom levels
6. Color Contrast: Ensure polyline colors stand out against the map background
7. Route Direction: Consider adding arrows or markers to indicate direction along the route
8. State Management: Store polyline data efficiently and update reactively when needed
